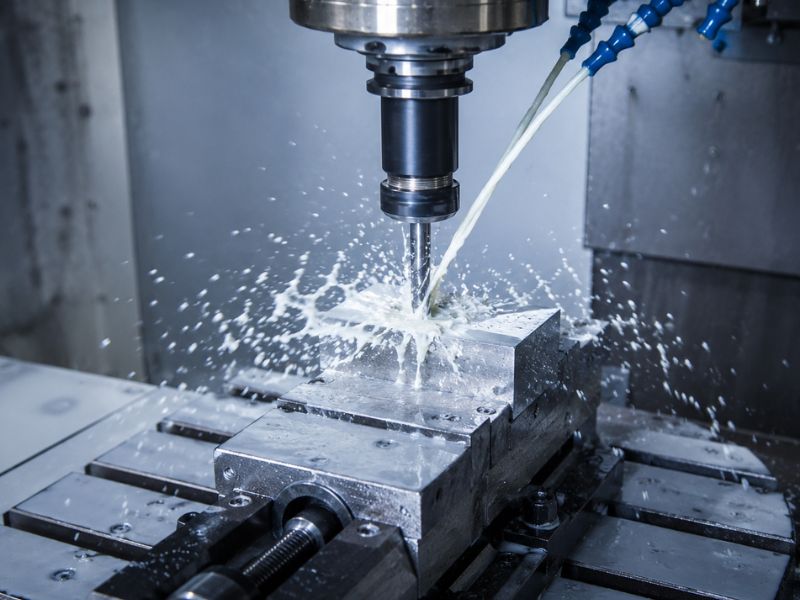

Precision CNC Hole Drilling Services
We provide precision CNC drilling services for custom machined parts, delivering accurate hole geometry, stable positional tolerances, and reliable repeatability across prototypes and production volumes. Our CNC drilling services support metals and engineering plastics for demanding industrial applications.
CNC Drilling Service Specifications
| Item | Specifications |
|---|---|
| Drilling Processes | Drilling, deep hole drilling, peck drilling, spot drilling |
| Hole Diameter Range | Ø0.5 mm – Ø50 mm |
| Maximum Hole Depth | Up to 30× hole diameter |
| Typical Hole Tolerance | ±0.05 mm |
| Tight Hole Tolerance | Down to ±0.01 mm |
| Position Accuracy | Up to ±0.02 mm |
| Surface Roughness | Ra 1.6–3.2 μm |
| Materials | Aluminum, stainless steel, steel, brass, copper, plastics |
| Secondary Operations | Reaming, tapping, countersinking, counterboring |
| Production Volume | Prototype to mass production |
| Inspection | Hole gauges, CMM inspection, visual inspection |
| Lead Time | Prototype 3–7 days · Production 2–5 weeks |
| Export Packing | Protective wrapping, labeled cartons, wooden crates |
Types of CNC Hole Drilling
Precision Round Holes
Counterbore Holes
Countersunk Holes
Slotted Holes
Multi-Hole Patterns
Custom Hole Features
Ready to Manufacture Your Drilling Parts?
Advantages of CNC Drilling
CNC drilling is widely used for producing accurate and repeatable hole features in custom machined parts. When properly applied, it delivers reliable results across different materials and production volumes.
Precision and Efficiency
CNC drilling enables accurate hole placement and consistent diameters while maintaining efficient cycle times, making it suitable for both prototyping and production runs.
Repeatability and Uniform
Computer-controlled drilling ensures uniform results across multiple parts, reducing dimensional variation and improving assembly reliability in batch production.
Complex Hole Geometries
By combining drilling with other CNC machining operations, complex hole geometries such as stepped, angled, or patterned holes can be achieved with controlled accuracy.
Diverse Applications and Industries of CNC Drilling
CNC drilling is widely applied in industrial machinery, automotive, electronics, aerospace, medical, and general fabrication projects. Typical uses include mounting and fastening holes, alignment and locating features, interface holes for connectors or sensors, and flow passages in metal and plastic components, with repeatability across production volumes being a key requirement.
Materials Suitable for CNC Drilling
Different materials behave very differently during CNC hole drilling. Cutting forces, heat generation, chip evacuation, and hole wall integrity all vary depending on material type. Our CNC drilling services apply material-specific tooling selection, spindle speeds, and feed control to ensure dimensional stability and surface quality across a wide range of CNC drilling parts.
- Metals: Aluminium, stainless steel, carbon steel, brass, copper
- Plastics: POM, nylon, PTFE, PEEK
- Composites, Wood & Ceramics
Advanced CNC Drilling Capabilities
Many CNC drilling parts require more than standard round holes. Deep holes, angled holes, and compound features place higher demands on process control and machine capability. Our CNC drilling services support complex hole requirements by combining stable drilling cycles with multi-axis machining strategies to reduce setup errors and maintain positional accuracy.
- Deep Hole & Complex Drilling
- Multi-axis CNC drilling: 3-axis drilling for standard parts; 4/5-axis drilling for angled or compound holes
- Combined CNC drilling with milling and tapping operations
Precision Control for CNC Drilled Parts
For functional assemblies, hole performance depends not only on diameter, but also on depth, position, and repeatability. Hole diameters are typically controlled within ±0.02–0.05 mm depending on material type, hole depth, diameter ratio, and whether secondary operations such as reaming or boring are applied. Positional tolerances are commonly maintained within ±0.05–0.1 mm based on part structure and machining requirements.
- Hole Diameter & Depth Control: Verification for through holes, blind holes, and counterbores
- Positional Accuracy: Tolerance control for multi-hole patterns and alignment-critical parts
- Production Consistency: Stable CNC drilling results from the first article to batch production
What Our Customers Say about Our CNC Drilling Services?
Hole accuracy, repeatability, and communication during production directly affect assembly results. Our customers rely on DZ Making for consistent quality, clear communication, and dependable CNC drilling results across different projects. Below is feedback from customers on real CNC drilling projects.
Hole size and position were consistent across the batch, and parts were assembled without adjustment. The drilling quality met our drawing requirements.
Communication on tolerances and lead time was clear, which made the CNC drilling process straightforward from quotation to delivery.
The first article matched expectations, and production parts followed the same standard. Assembly went smoothly without rework.
Why Choose DZ Making for CNC Drilling Parts?
At DZ Making, our CNC drilling services are built around practical manufacturing efficiency, process integration, and measurable hole quality that supports real assembly requirements.
01
02
03
FAQs
What tolerance can CNC drilling achieve?
Typical CNC drilling tolerances range from ±0.02–0.05 mm, depending on material, hole diameter, and depth. For tighter requirements, secondary processes such as reaming may be applied.
Yes. CNC drilling can produce deep holes when tool selection, drilling cycles, and chip evacuation are properly controlled. Depth-to-diameter ratios are evaluated during drawing review to ensure stability.
CNC hole drilling is suitable for metals such as aluminium and stainless steel, as well as engineering plastics. Drilling parameters are adjusted based on material behaviour to maintain hole quality.
CNC drilling is optimised for round holes with controlled depth and efficiency. Milling is typically used for non-round holes, slots, or complex hole geometries.
First article inspection is used to validate CNC drilling parts before production. Process controls and in-process checks help maintain consistent hole size and position across batches.
Yes. CNC drilling is often integrated with milling and tapping in the same setup, reducing repositioning error and improving overall part accuracy.
A technical drawing with hole size, depth, tolerance, material, and quantity is recommended. Additional notes on functional or assembly requirements help optimize the drilling process.
What Is CNC Drilling?
CNC drilling is a machining process used to produce cylindrical holes by advancing a rotating drill tool into a fixed workpiece under computer control. The CNC program defines the exact hole location, drilling depth, and drilling sequence, ensuring consistent hole geometry across individual parts and production batches.
In practical CNC machining, drilling operations often begin with spot drilling or center drilling to establish an accurate starting point and reduce tool wandering. This step is especially important for deeper holes or tighter positional tolerances. Once the hole is established, standard drilling cycles or peck drilling cycles are applied depending on hole depth, material type, and chip evacuation requirements.
CNC drilling is primarily used to create through holes, blind holes, counterbores, and countersunk features. While drilling itself produces round holes, it is frequently combined with milling, tapping, or reaming to meet final tolerance, surface finish, or functional requirements in CNC drilling parts.
Design Considerations for CNC Drilling Parts
Designing holes for CNC drilling involves more than defining diameter and depth. Hole orientation, depth-to-diameter ratio, chip evacuation, tool access, and interaction with secondary operations all influence drilling stability, achievable tolerance, and production efficiency.
General CNC Drilling Design Tips
- Maintain stable drill entry and exit conditions: Hole entry and exit surfaces should be as perpendicular as possible to the drilling axis. Angled or interrupted surfaces increase the risk of tool deflection, poor hole location, and edge chipping as the drill breaks through.
- Avoid interrupted drilling paths when straightness matters: Drilling through intersecting cavities or side openings can cause uneven cutting forces. This may affect hole straightness and increase the chance of tool damage, especially in deeper holes.
- Plan for chip evacuation, especially in blind holes: Through holes generally allow better chip clearance than blind holes. When blind holes are required, additional depth allowance helps prevent chip packing during drilling, reaming, or tapping operations.
- Limit thread depth to functional requirements: Most of the load in a threaded joint is carried by the first few thread pitches. Excessively deep threads increase machining time without improving performance and can complicate chip removal.
- Include lead-in features for threaded holes: Adding chamfers or countersinks at the start of internal threads and chamfers on external threads helps reduce burrs, improves thread quality, and supports smoother tool engagement.
CNC Drilling Process in Production Manufacturing
CNC drilling for production parts follows a controlled workflow that links design intent, machining strategy, and inspection requirements. Each stage focuses on reducing variation, managing risk, and ensuring CNC drilled parts meet functional and assembly expectations.
1. Design & Drawing Review
Customer drawings are reviewed with attention to hole size, depth, tolerance, and positional relationships. Special focus is placed on depth-to-diameter ratios, edge distances, multi-hole patterns, and assembly-critical features to identify potential drilling risks and manufacturability constraints before programming.
2. CNC Programming
Drilling programs are developed with a set of instructions, known as G-code, based on material properties and hole characteristics. Drilling cycles, spindle speeds, and feed rates are selected to balance accuracy, tool life, and chip evacuation, especially for deep holes, blind holes, and closely spaced hole patterns.
3. Machine Setup & Fixturing
Workholding and datum alignment are established to maintain positional accuracy across all drilled features. Tool selection, length offsets, and runout are verified to ensure repeatable CNC hole drilling results, particularly for batch production.
4. CNC Drilling Operations
Drilling operations are carried out under controlled cutting conditions. Through holes, blind holes, counterbores, and countersunk features are produced while monitoring chip evacuation, coolant flow, and tool condition to maintain hole quality and dimensional stability.
5. Quality Control & Inspection
Inspection focuses on hole diameter, depth, and positional accuracy relative to functional requirements. First article inspection validates the CNC drilling process, while in-process and final checks help ensure consistent results across production runs.
Alternatives to CNC Drilling
CNC drilling is commonly used for round holes, but certain hole features or tolerance requirements call for alternative machining methods.
- Manual Drilling
- Milling
- Laser Drilling
- Waterjet Cutting
- EDM
Manual drilling is typically used for simple, non-critical holes or low-volume work. Milling is preferred for non-round holes, slots, or features requiring precise shape control. Laser drilling is suitable for very small holes or thin materials where minimal cutting force is required. Waterjet cutting is used when thermal effects must be avoided, especially for thicker plates or sensitive materials. EDM is chosen for hard materials or complex internal features that cannot be produced using conventional cutting tools.
