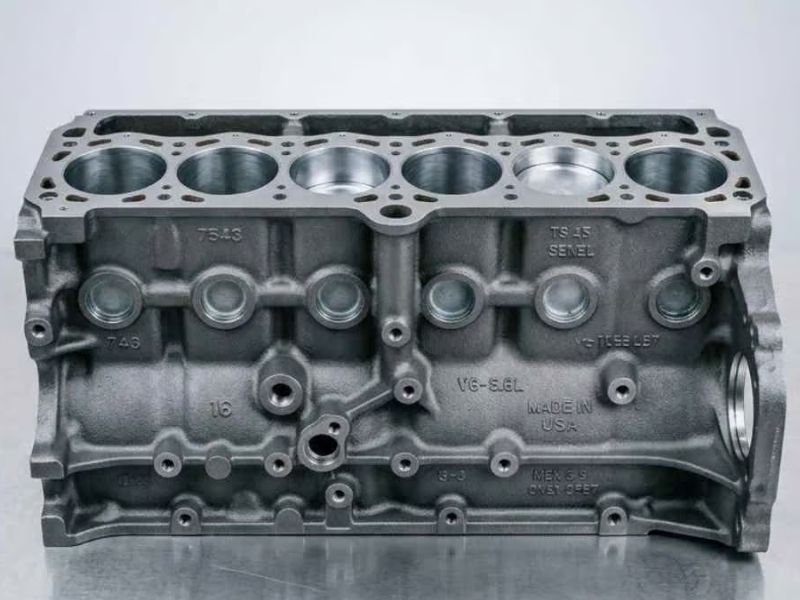

Custom Cylinder Blocks
DZ Making provides custom cylinder block CNC machining for engine, compressor, hydraulic, pneumatic, pump, and industrial machinery applications. As a custom cylinder block supplier, we manufacture precision-machined cylinder blocks from your drawings, helping control bore alignment, sealing surfaces, critical dimensions, and assembly fit for prototype and batch production.
Custom Cylinder Block Machining Specifications
| Parameter | Reference Range / Options |
|---|---|
| Material | Aluminum, cast iron, ductile iron, carbon steel, stainless steel, engineering plastics |
| Bore Diameter | Ø5 mm to Ø300 mm |
| Bore Depth | 10 mm to 400 mm, depending on tool access and material |
| Bore Tolerance | Commonly ±0.01 mm to ±0.05 mm for critical bore areas |
| General Machining Tolerance | ±0.05 mm to ±0.10 mm, depending on size and structure |
| Flatness Requirement | 0.01 mm to 0.05 mm for sealing faces or mounting surfaces |
| Surface Roughness | Ra 0.8–3.2 μm for machined faces; tighter finish available after review |
| Thread Options | Metric, UNC, UNF, BSP, NPT, and custom threaded ports |
| Machining Processes | CNC milling, 5-axis machining, precision boring, drilling, tapping, surface grinding |
| Surface Finishing | Anodizing, hard anodizing, black oxide, nickel plating, powder coating, passivation, polishing, blasting |
| Drawing Files | PDF, DWG, DXF, STEP, STP, IGES, IGS, X_T |
Custom Cylinder Blocks for Different Applications
Engine Cylinder Blocks
Compressor Cylinder Blocks
Hydraulic Cylinder Blocks
Pneumatic Cylinder Blocks
Pump Cylinder Blocks
Industrial Machinery Cylinder Blocks
Send Your Cylinder Block Drawings for Machining Review
Key Performance Features of Our Custom Cylinder Blocks
Custom cylinder block performance depends on more than material choice alone. These key features help support stable strength, thermal control, and accurate assembly in OEM cylinder block projects.
Durable Structural Performance
Custom cylinder blocks are built to support mechanical load, vibration, pressure, and repeated movement during long-term operation. Proper material selection, stable wall thickness, reinforced block geometry, and suitable surface treatment help improve wear resistance, load-bearing strength, and service life in demanding mechanical systems.
Efficient Thermal Management
Cylinder blocks often work near heat sources or moving components, so thermal stability is important. Aluminum, cast iron, and other materials can be selected according to heat transfer, strength, and working temperature needs. Cooling channels and machined contact surfaces help reduce thermal deformation and support stable operation.
Precision Bore Alignment
Cylinder bores, mounting holes, threaded holes, sealing faces, and assembly interfaces must align correctly with mating parts under repeated operation. Accurate bore position, hole layout, thread quality, and sealing surface control help improve fit, reduce leakage risk, and support smoother assembly in CNC-machined cylinder blocks.
Our Precision Cylinder Block Machining Capabilities
As a custom cylinder block manufacturer, we use CNC milling, 5-axis machining, precision boring, drilling, tapping, and surface grinding to machine cylinder bores, deck surfaces, threaded ports, oil passages, coolant channels, and sealing faces. These processes help control bore alignment, hole position, flatness, and assembly fit from prototype to batch production.
Custom Cylinder Block Material Options
We machine custom cylinder blocks from different metals and engineering materials based on load, wear, heat, corrosion, and weight requirements. This helps you choose a material that matches both machining requirements and long-term operating performance.
- Aluminum cylinder block: Lightweight and easy to machine, commonly used in prototype, compressor, pump, and heat-transfer applications.
- Cast iron cylinder block: Wear-resistant, vibration-damping, and dimensionally stable, often used in engines, compressors, and heavy-duty mechanical systems.
- Ductile iron cylinder block: Tougher and more fatigue-resistant than standard cast iron, supporting cylinder block components under heavier load conditions.
- Steel cylinder block: High-strength, pressure-resistant, and durable, applied in hydraulic, pump, pressure-related, and industrial machinery projects.
- Stainless steel cylinder block: Corrosion-resistant, clean, and stable in harsh environments, used for fluid systems and special working conditions.
- Engineering plastic block: Lightweight, insulating, and corrosion-resistant, used for prototype test blocks, low-load pneumatic parts, and special non-metal applications.
Flexible Cylinder Block Size Customization
Cylinder block dimensions are customized around your drawings, installation space, and assembly needs. We support prototype, low-volume, and repeat production with controlled sizing for bores, mounting interfaces, sealing areas, and critical fitting features.
- Overall size: Custom length, width, and height help the cylinder block match equipment space, housing limits, and assembly layouts.
- Bore dimensions: Bore diameter, bore depth, and bore spacing can be defined to support piston, sleeve, shaft, or mating part requirements.
- Wall thickness: Controlled wall thickness and reinforced ribs help improve strength, reduce deformation, and support long-term mechanical stability.
- Mounting interfaces: Mounting hole patterns, bolt positions, and interface dimensions are customized for accurate installation and assembly fit.
- Critical tolerance zones: Key fitting areas can be controlled according to drawing requirements to support sealing, alignment, and repeatable production.
Custom Cylinder Block Structural Options
Cylinder block structures are defined around motion, sealing, fluid routing, and fastening needs. We adjust each feature from your drawings so the block can connect correctly with mating parts and support the required internal flow paths.
- Bore structures: Single bores, multi-bore layouts, sleeve bores, and stepped bores can be customized to match pistons, sleeves, shafts, or moving components.
- Internal channels: Oil passages, coolant channels, air passages, hydraulic channels, and cross holes support lubrication, cooling, airflow, or fluid transfer inside the cylinder block.
- Port structures: Hydraulic ports, pneumatic ports, fluid ports, and threaded port interfaces can be machined for pressure control, pipe connection, and system integration.
- Mounting structures: Mounting holes, threaded holes, dowel pin holes, bolt patterns, counterbores, and countersinks help the cylinder block align accurately with mating parts.
- Sealing structures: O-ring grooves, gasket surfaces, sealing grooves, deck surfaces, and cover contact faces support leakage control and stable sealing performance.
Cylinder Block Surface Finishing and Heat Treatment
Surface finishing helps improve corrosion resistance, wear resistance, appearance, and working stability for custom cylinder blocks. DZ Making recommends finishing or heat treatment options based on cylinder block material, operating environment, and long-term performance needs.
- Anodizing: Adds corrosion protection and a clean surface finish for aluminum cylinder blocks.
- Hard anodizing: Improves surface hardness and wear resistance for aluminum cylinder block components.
- Black oxide: Provides mild corrosion protection and a dark finish for carbon steel cylinder block parts.
- Nickel plating: Enhances corrosion resistance, wear resistance, and surface durability for metal cylinder blocks.
- Powder coating: Protects external surfaces where appearance and environmental resistance are required.
- Passivation: Improves corrosion resistance on stainless steel machined cylinder block parts.
- Polishing or blasting: Adjusts surface texture, appearance, and contact surface requirements.
- Heat treatment: Used when strength, hardness, wear resistance, or dimensional stability must be improved.
What Do Customers Say About Our Custom Cylinder Block Machining?
Our customers value clear engineering communication, stable precision machining, and reliable batch support for custom cylinder block projects. Here are their experiences working with DZ Making.
DZ Making helped us machine custom compressor cylinder blocks based on our 3D files and tolerance notes. The bore alignment, sealing faces, and port positions matched our assembly requirements well. Their engineering feedback also helped us adjust several details before moving into the next prototype stage
We needed a reliable custom cylinder block supplier for small-batch hydraulic parts. DZ Making provided clear communication, stable CNC machining quality, and inspection support for threaded ports, sealing grooves, and critical hole positions. The batch consistency made our supplier approval process much easier.
Our project required non-standard cylinder blocks for industrial machinery, with custom dimensions, mounting layouts, and surface treatment. DZ Making supported us from sample machining to repeat production, and the parts showed good assembly fit across multiple production runs.
Why Choose DZ Making for Custom Cylinder Block Projects?
We support engineering review, stable CNC machining, and export delivery support. This helps make custom cylinder block sourcing more predictable from prototype to batch production.
01
02
03
FAQs
Can you manufacture custom cylinder blocks from a sample instead of drawings?
Yes. If drawings are not available, you can send a physical sample for evaluation. Our team can review the structure, measure key dimensions, and discuss whether reverse engineering is suitable before starting custom cylinder block machining.
We commonly work with 2D drawings and 3D CAD files. STEP, STP, IGS, IGES, X_T, PDF, and DWG files are helpful for quotation, machining review, and tolerance confirmation.
Yes. During engineering review, we can suggest practical adjustments to tolerance ranges, wall thickness, hole depth, surface finish, material choice, or machining sequence. These changes can help reduce cost while keeping the cylinder block function and assembly requirements.
Critical areas can be controlled through suitable machining processes and inspection steps. Depending on the drawing, we may use precision boring, surface grinding, thread gauges, bore gauges, height gauges, surface roughness checks, or CMM inspection.
Yes. Inspection reports can be provided when required. Reports may include key dimensions such as bore diameter, hole position, flatness, thread features, surface finish, and other critical points marked on your drawing.
Yes. We can support replacement cylinder block projects for old equipment, discontinued components, and non-standard machinery parts. Samples, old drawings, photos, and assembly information help us evaluate feasibility and reproduce key fitting areas more accurately.
Aluminum vs Cast Iron Cylinder Blocks: Which Material Fits Your Project
Aluminum cylinder blocks are often selected when weight reduction, good machinability, and thermal transfer matter. Aluminum is easier to mill, drill, bore, and tap, which makes it useful for prototype cylinder blocks, compressor parts, pump components, and lightweight mechanical assemblies. It also works well with anodizing or hard anodizing when corrosion resistance or surface wear resistance is required.
Cast iron cylinder blocks offer a different advantage. They provide stronger wear resistance, better vibration damping, and stable dimensional behavior under long-term mechanical use. This makes cast iron suitable for engine cylinder block projects, compressor systems, and heavy-duty mechanical equipment where durability matters more than weight reduction.
The best material depends on the real working conditions. Aluminum is usually better for lightweight structures, heat-transfer needs, and fast prototype validation. Cast iron is often more suitable for wear-sensitive bores, vibration-prone systems, and long-life mechanical assemblies. Before confirming material, you should compare load, temperature, surface treatment, and machining budget.
Key Machining Challenges in Custom Cylinder Block Manufacturing
Custom cylinder block manufacturing is more complex than machining a simple metal block. A cylinder block may include bores, threaded holes, sealing faces, oil passages, coolant channels, air passages, and multi-side mounting features. These areas must work together, so small machining errors can cause leakage, poor fit, vibration, uneven wear, or assembly failure.
Common machining challenges include:
- Bore accuracy and alignment: Keeping bore diameter, roundness, straightness, and spacing consistent is difficult, especially in multi-bore cylinder blocks.
- Sealing face flatness: Deck surfaces, gasket faces, and cover contact areas can lose flatness during clamping, rough machining, or material stress release.
- Internal channel machining: Oil passages, coolant channels, hydraulic ports, and cross holes are hard to machine cleanly because tool access is limited.
- Burr and chip control: Intersecting holes and deep passages may leave burrs or chips inside the cylinder block, affecting flow and assembly.
- Thin-wall deformation: Compact or lightweight cylinder block designs may deform during clamping, machining, heat treatment, or surface finishing.
- Material machining behavior: Aluminum may deform, cast iron can increase tool wear, and steel or stainless steel can create heat that affects surface finish, tool stability, and tolerance control.
- Multi-face datum control: Multi-side cylinder blocks need repeated positioning, so each setup can introduce datum errors that affect bore alignment, port matching, sealing faces, and final assembly fit.
What Should You Know Before Ordering Custom Cylinder Blocks?
Ordering custom cylinder blocks requires clear technical information. A complete drawing package helps us evaluate material cost, machining difficulty, tolerance feasibility, surface treatment, inspection needs, and delivery time. This is especially important for prototype projects, low-volume production, and repeat OEM orders.
Before requesting a cylinder block quote, prepare the following information:
- 2D drawings and 3D CAD files: Include dimensions, tolerances, bore requirements, thread details, surface roughness, sealing areas, and inspection points.
- Material requirements: Confirm whether the project needs aluminum cylinder blocks, cast iron cylinder blocks, steel, stainless steel, ductile iron, or another engineering material.
- Critical dimensions: Mark key areas such as bore diameter, bore alignment, hole position, sealing face flatness, thread depth, and sleeve or insert fits.
- Channel and port details: Clearly show oil passages, coolant channels, air passages, hydraulic ports, cross holes, and any internal flow-related structures.
- Surface treatment needs: Specify anodizing, hard anodizing, black oxide, nickel plating, passivation, powder coating, polishing, blasting, or heat treatment when required.
- Quantity and production stage: State whether the order is for one prototype, low-volume testing, replacement parts, or repeat batch production.
- Inspection requirements: Confirm whether you need CMM inspection, bore gauge checks, flatness inspection, surface roughness testing, thread gauges, or formal inspection reports.
